Deploy IncusOS Cluster¶

This is an example guide for deploying an IncusOS cluster using Operations Center. For this guide, we use Incus to run the IncusOS instances as virtual machines.

For additional information about running IncusOS on Incus also refer to the IncusOS documentation.

Prerequisites¶

In order to execute this guide, you need:

a working Incus installation
enough resources to run the virtual machines:
- CPU (the more the better)
- RAM, recommended 16 GB to allow 2 VM with 4 GB each + headroom for the host (it also works with 2 GB for each VM), for a cluster with multiple nodes, factor in additional RAM accordingly.
- Disk space (~100 GB)
Client certificate (incus remote generate-certificate)
Recent version of the operations-center CLI, get the suitable version for your system from GitHub releases

Create a project (optional, but recommended)¶

incus project create tutorial-incusos-cluster
incus project switch tutorial-incusos-cluster

incus profile device add default eth0 nic network=incusbr0 name=eth0
incus profile device add default root disk pool=default path=/

Get Operations Center ISO¶

Make sure, you have your client certificate ready.

incus remote get-client-certificate

Visit IncusOS image downloader and configure your ISO as follows:

Image type: ISO
Image architecture: according to your system’s architecture
Image usage: Installation
Image application: Operations Center
Don’t select Wipe the target drive and Automatic reboot after installation.
Select Apply default configuration
Insert your TLS client certificate
No Advanced settings are necessary

Hit Download to get the ISO and store it as ~/Downloads/IncusOS_OperationsCenter.iso.

Download the Operations Center ISO using the command-line:

OPERATIONS_CENTER_SEED_FILE=$(mktemp --suffix=.json)
cat << EOF > "${OPERATIONS_CENTER_SEED_FILE}"
{
  "seeds": {
    "install": {
      "version": "1",
      "force_install": false,
      "force_reboot": false
    },
    "applications": {
      "version": "1",
      "applications": [
        {
          "name": "operations-center"
        }
      ]
    },
    "operations-center": {
      "version": "1",
      "trusted_client_certificates": [
        $(incus remote get-client-certificate | jq -Rs .)
      ]
    }
  },
  "type": "iso",
  "architecture": "x86_64"
}
EOF

IMAGES_RESP=$(curl -s -X POST -d @${OPERATIONS_CENTER_SEED_FILE} "https://incusos-customizer.linuxcontainers.org/1.0/images")
DOWNLOAD_PATH=$(echo ${IMAGES_RESP} | jq -r '.metadata.image')
curl -o ~/Downloads/IncusOS_OperationsCenter.iso --compressed "https://incusos-customizer.linuxcontainers.org${DOWNLOAD_PATH}"

Install Operations Center¶

Import the ISO image as storage volume, create the Operations Center VM and start the VM for the first time:

incus storage volume import default ~/Downloads/IncusOS_OperationsCenter.iso IncusOS_OperationsCenter.iso --type=iso

incus init --empty --vm OperationsCenter \
  -c security.secureboot=false \
  -c limits.cpu=4 \
  -c limits.memory=4GiB \
  -d root,size=50GiB
incus config device add OperationsCenter vtpm tpm
incus config device add OperationsCenter boot-media disk pool=default source=IncusOS_OperationsCenter.iso boot.priority=10

incus start OperationsCenter --console

This will first enroll the secure boot keys. After this is done, the following message will be displayed:

Enrolling secure boot keys from directory: \loader\keys\auto
Custom Secure Boot keys successfully enrolled, rebooting the system now!

Attach again to the console with:

incus console OperationsCenter

Wait for the first installation stage to complete with the following message:

IncusOS was successfully installed.
Please remove the install media to complete the installation.

Exit the console (press <ctrl>+a q). You might want to reset your terminal afterwards with reset.

Stop the VM, remove the install media and start the VM again:

incus stop OperationsCenter
incus config device remove OperationsCenter boot-media
incus start OperationsCenter --console

Wait for Operations Center to fully installed, which is the case when you see the following message in the log output:

System is ready

Note down the IP address displayed at the bottom of the screen.

Note down the server certificate fingerprint shown in the logs looking like this:

2025-12-02 13:24:43 INFO Application TLS certificate fingerprint fingerprint=d3e2f6e179f062b29e1243af9b3826c4b1dbeac303586c1243ef5119da05fa93 name=operations-center

Exit the console again (<ctrl>+a q) and reset the terminal if necessary (reset).

Access Operations Center¶

Make sure, Operations Center CLI is using the client certificate and key we used to seed the IncusOS installation ISO with and add the newly installed Operations Center instance as a new remote tutorial-operations-center for operations-center CLI.

Replace <operations-center-ip> with the IP address you noted down earlier.

While adding the new remote, operations-center CLI will prompt you to confirm the server certificate fingerprint.

mkdir -p ~/.config/operations-center
cp ~/.config/incus/client.* ~/.config/operations-center/
operations-center remote add tutorial-operations-center https://<operations-center-ip>:8443 --auth-type tls
operations-center remote switch tutorial-operations-center

Follow the instructions in the Setup Operations Center UI tutorial to set up certificate-based authentication for the Operations Center UI.

Point your web browser to https://<operations-center-ip>:8443 (replace <operations-center-ip> with the IP address you noted down earlier) and log in using your client certificate.

If everything worked as expected, you should see the Operations Center UI like this:

Operations Center UI - Logged in

Wait for Updates¶

As soon as Operations Center is up and running, it starts checking for updates and will download them automatically. The cached updates are also used as source for the pre-seeded IncusOS installation images. Therefore, we need to wait for the updates to be downloaded before we can continue with the deployment of the IncusOS instances.

The following command lists all the available updates. As soon as there is at least one update in state ready you can continue with the deployment.

operations-center provisioning update list

Navigate to Updates.

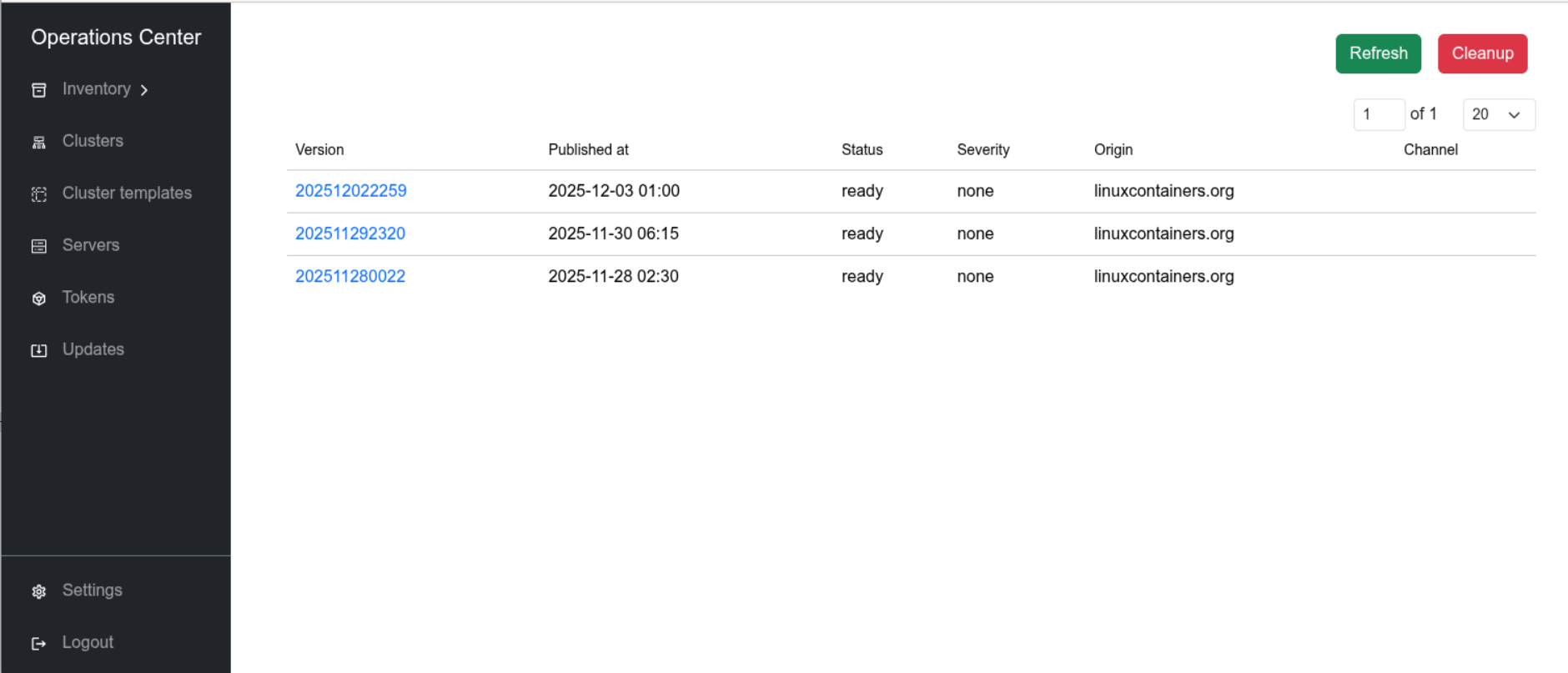

Operations Center UI - Updates

Wait until at least one update is in state ready before you continue with the deployment.

Prepare for IncusOS Installation¶

Create a new provisioning token for the IncusOS installations and list the tokens to get the token UUID:

operations-center provisioning token add --description "IncusOS Cluster Tutorial" --uses 20
operations-center provisioning token list

Now get the pre-seeded installation ISO (this process may take a while):

operations-center provisioning token get-image <token> ~/Downloads/IncusOS.iso --architecture x86_64 --type iso

Navigate to Tokens and click Issue token.

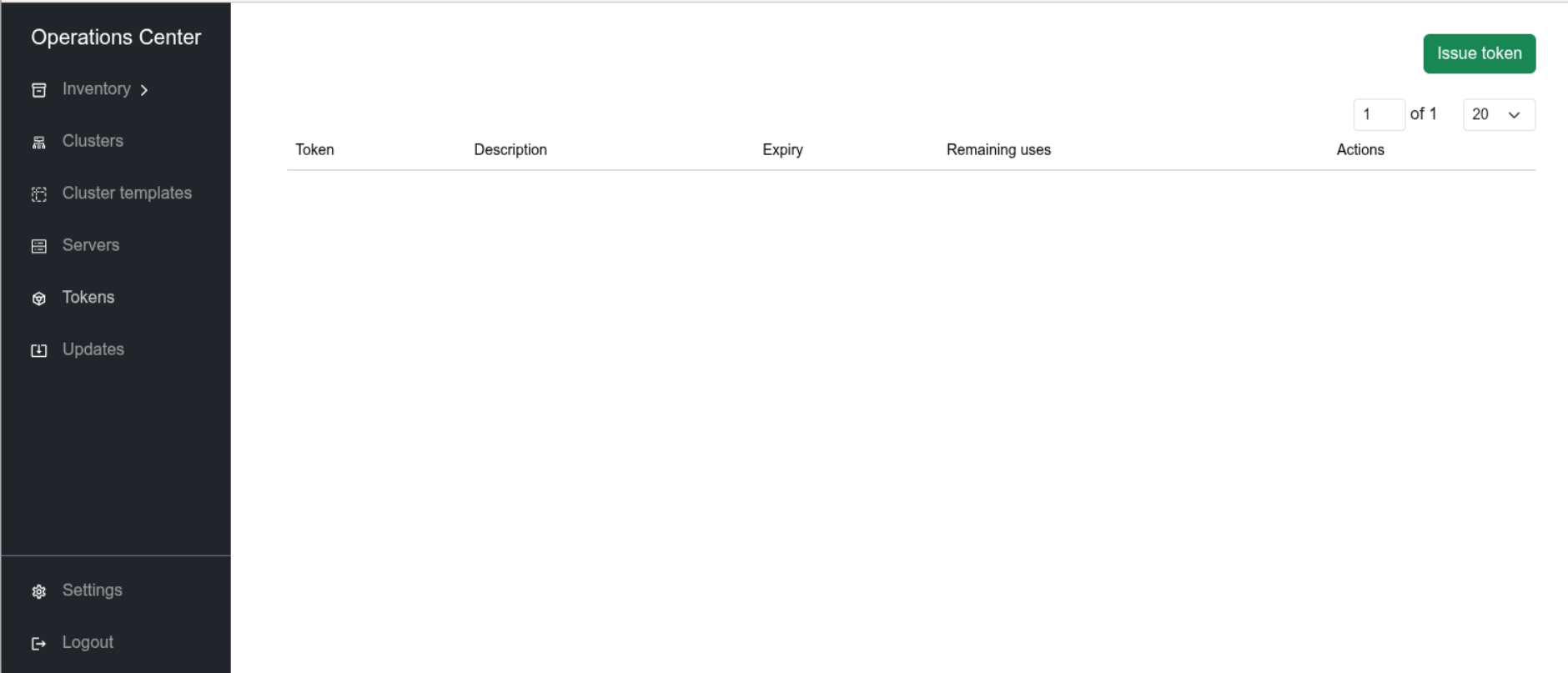

Operations Center UI - Tokens

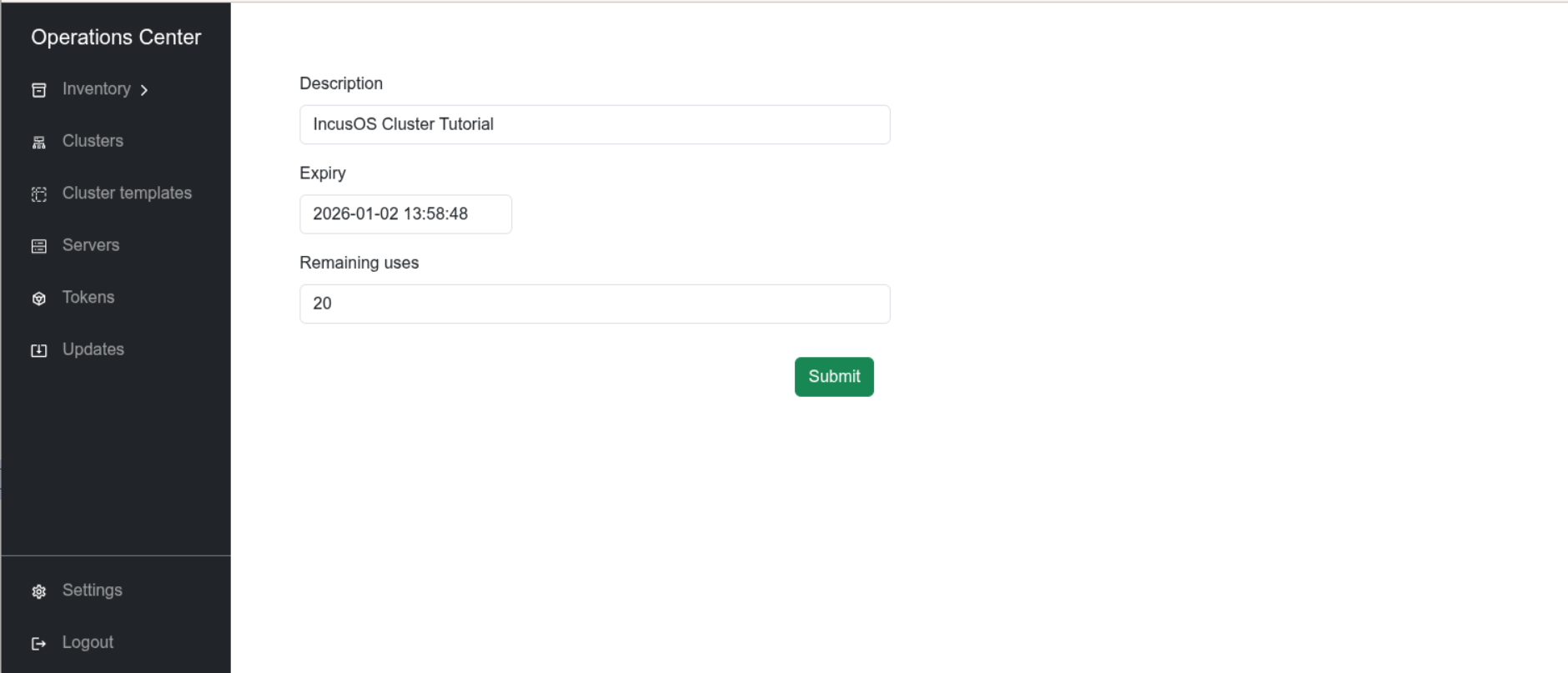

Operations Center UI - Issue Token

Now get the pre-seeded installation ISO by clicking on the download action of the newly created token and save it as ~/Downloads/IncusOS.iso.

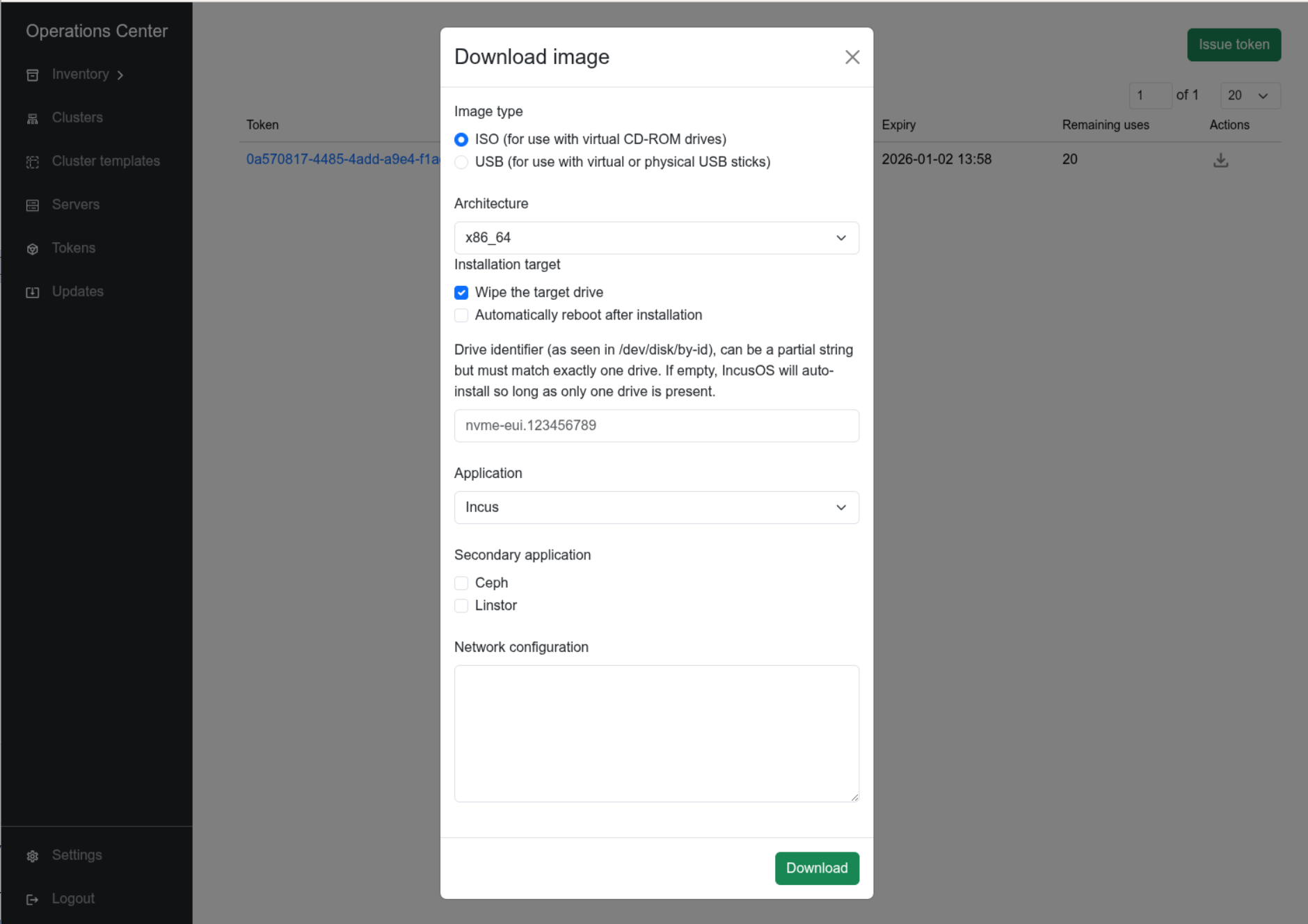

Operations Center UI - Download ISO

Install IncusOS¶

Note

In order to create a cluster with multiple IncusOS instances, repeat the steps below for each instance.

Instead of naming all instances IncusOS, use unique names for each instance, e.g. IncusOS01, IncusOS02, etc.

Import the ISO image as storage volume, create the IncusOS VM and start the VM for the first time:

incus storage volume import default ~/Downloads/IncusOS.iso IncusOS.iso --type=iso

incus init --empty --vm IncusOS \
  -c security.secureboot=false \
  -c limits.cpu=4 \
  -c limits.memory=4GiB \
  -d root,size=50GiB
incus config device add IncusOS vtpm tpm
incus config device add IncusOS boot-media disk pool=default source=IncusOS.iso boot.priority=10

incus start IncusOS --console

This will first enroll the secure boot keys. After this is done, the following message will be displayed:

Enrolling secure boot keys from directory: \loader\keys\auto
Custom Secure Boot keys successfully enrolled, rebooting the system now!

Attach again to the console with:

incus console IncusOS

Wait for the first installation stage to complete with the following message:

IncusOS was successfully installed.
Please remove the install media to complete the installation.

Exit the console (press <ctrl>+a q). You might want to reset your terminal afterwards with reset.

Stop the VM, remove the install media and start the VM again:

incus stop IncusOS
incus config device remove IncusOS boot-media
incus start IncusOS --console

Wait for Operations Center to fully installed, which is the case when you see the following message in the log output:

System is ready

Cluster the Servers¶

In order to be able to connect to the cluster with Incus later on, we need to provide our client certificate as part of the application configuration.

Make sure, you have your client certificate at hand (see at the beginning of this guide, get it with incus remote get-client-certificate).

Create a file application-config.yaml like this, past your client certificate and make sure the indentation is correct:

certificates:
  - type: client
    name: my-client-cert
    description: "Client certificate for accessing the cluster"
    certificate: |-
      <paste your client certificate here>

For the clustering step, the respective servers, that should be clustered, need to be registered with Operations Center and in ready state.

If this is the case can be verified with the following command to list all servers:

operations-center provisioning server list

Note

The server name in the server list defaults to the machine’s host name, which if not defined will default to the machine ID. Therefore it is normal for setups based on this guide to have random UUID as the server names.

Note the server names from the list output for the following command.

Note

If you have created multiple IncusOS instances in the previous step, you need to note all the server names and repeat the --server-names (or short -s) flag for each server.

We use tutorial-incusos-cluster as the name of the cluster and the connection URL of the first server as the <connection-url> of the cluster.

Note

For more serious setups, it is good practice to use e.g. DNS round robin or a load balancer to access the cluster through all servers.

operations-center provisioning cluster add tutorial-incusos-cluster <connection-url> --server-names <server-name> --application-seed-config application-config.yaml

Check the existence of the newly created cluster with:

operations-center provisioning cluster list

Note down the fingerprint of the cluster by showing it with:

operations-center provisioning cluster show tutorial-incusos-cluster

Navigate to Clusters and click Create cluster.

Operations Center UI - Clusters

Fill in the following details:

Name: tutorial-incusos-cluster
Connection URL: <connection-url> (use the connection URL of the first server)
Select the servers to be part of the cluster (select all servers you created previously)
Server type: incus
Services configuration: leave empty for this tutorial

Application seed config:

certificates:
  - type: client
    name: my-client-cert
    description: "Client certificate for accessing the cluster"
    certificate: |-
      <paste your client certificate here>

Operations Center UI - Create Cluster

Click the Create button to create the cluster.

After successful cluster creation, you should see the cluster in the list.

Note

If the clustering fails, the cluster can be removed from Operations Center and all the servers can be reset (factory reset) with the following command: operations-center provisioning cluster remove tutorial-incusos-cluster --mode=factory-reset.

After this command, wait for all the servers to register again with Operations Center. You can check the status with: operations-center provisioning server list. Wait until all the server are in status ready again.

Note

For the sake of this guide, we have only specified a very minimal application configuration and no service configuration at all during the clustering.

For more serious setups, you might want to look into the options these config files offer.

Note down the connection URL and the fingerprint of the cluster for the next step.

Access the IncusOS Cluster¶

In order to access the newly created Incus cluster, add it as a remote to Incus:

incus remote add tutorial-incusos-cluster <connection-url>
incus remote switch tutorial-incusos-cluster

Test the connection to Incus:

incus cluster list

If you want to access the Incus Web UI of the cluster, add your client certificate to the trusted certificates:

incus config trust add-certificate .config/incus/client.crt

Now point your web browser to the connection URL of the cluster and you should be able to log in using your client certificate.

Terraform Configuration¶

In order to continue the configuration of the cluster with Terraform or OpenTofu, fetch the terraform-configuration artifact:

operations-center provisioning cluster artifact archive tutorial-incusos-cluster terraform-configuration ~/Downloads/tutorial-incusos-cluster-terraform.zip

Extract the content of the archive somewhere convenient, e.g. ~/Downloads/tutorial-incusos-cluster-terraform, enter the directory and use terraform or tofu to manage your cluster:

mkdir -p ~/Downloads/tutorial-incusos-cluster-terraform
unzip ~/Downloads/tutorial-incusos-cluster-terraform.zip -d ~/Downloads/tutorial-incusos-cluster-terraform
cd ~/Downloads/tutorial-incusos-cluster-terraform
tofu init
tofu plan
cd -

Start Over¶

If you want to start over with this tutorial and you created the project at the beginning of this tutorial, you can simply delete the project including all everything contained in the project with the following command:

incus project switch default
incus project delete tutorial-incusos-cluster --force
operations-center remote remove tutorial-operations-center
incus remote switch local
incus remote remove tutorial-incusos-cluster

Debugging / Inspection¶

Since we are running the IncusOS instances as VM inside of Incus, you may enter the respective VM with incus exec <vm-name> -- bash to inspect and debug.

See also the Debugging section in the IncusOS documentation.
